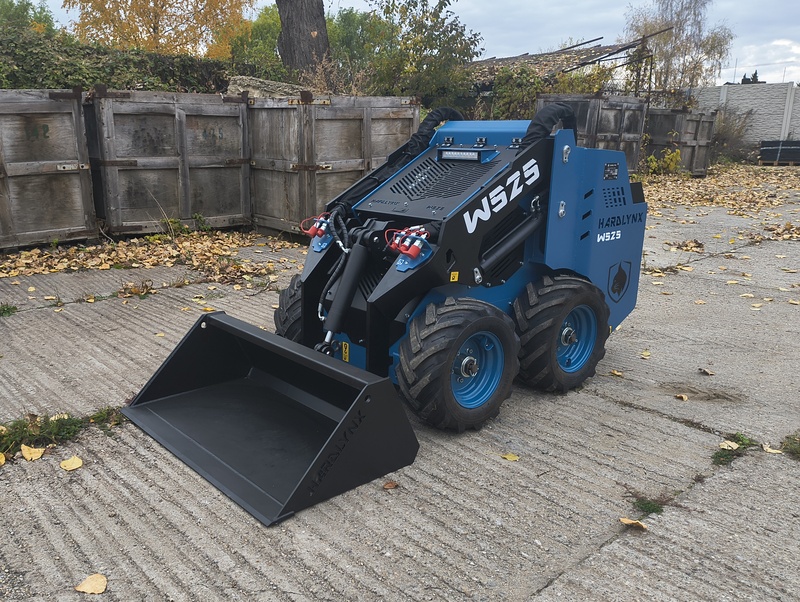

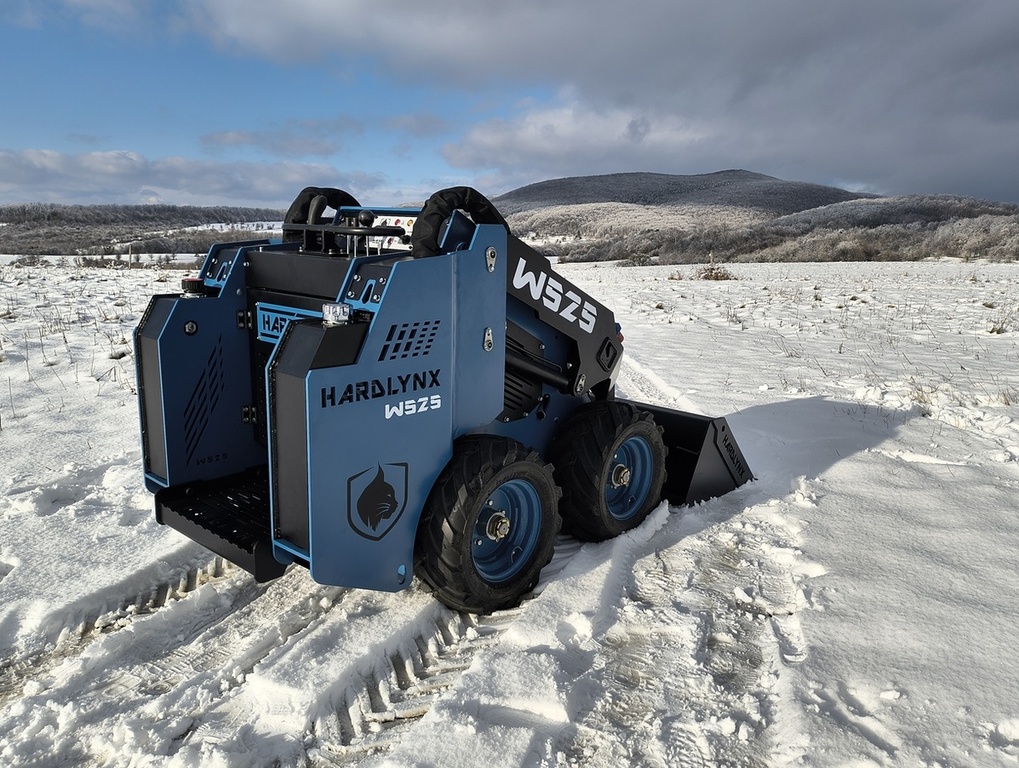

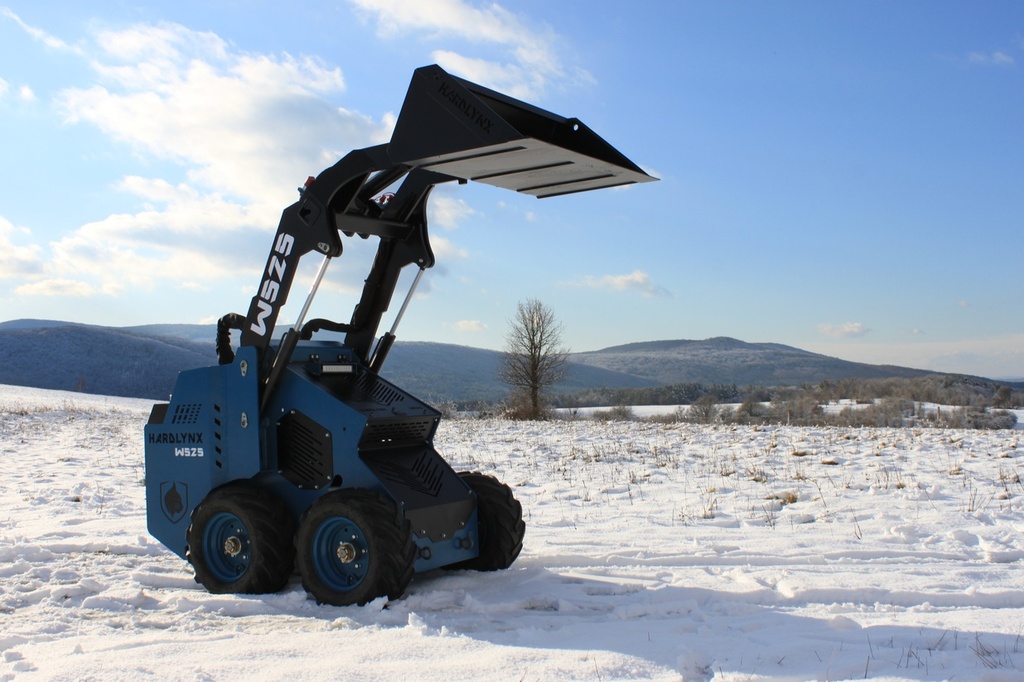

Skid steer loader W525

Operating weight
1500 kg
Tipping load
600 kg
Hinge pin height
2150 mm
Engine
Kubota D1105
Hydraulic pump
Bondioli & Pavesi
Wheels
23x10.50-12

Technical specification

GENERAL SPECIFICATIONS
Rated load capacity (ISO)
300 kg
Tipping load (ISO)
600 kg
Hinge pin height
2150 mm
Ground clearance
167 mm
Maximum travel speed
5.5 km/h
WEIGHTS
Operating weight
1500 kg
Machine weight (w bucket)
1425 kg
ENGINE
Make / Model
Kubota D1105-E4B
Emission regulation
EPA Tier 4 + EU Stage V
Engine type
Water cooled 4 cycle diesel engine with 3 cylinder
Displacement
1.123 l
Gross power
18.5 kW (24.8 HP) / 3000 rpm
Maximum torque
71.5 Nm / 2200 rpm
WHEELS
Standard tires
23x10.50-12
DRIVE SYSTEM
Main drive
Fully hydrostatic, 4 wheel drive
Transmission
Direct drive of hydraulic motor to wheel
HYDRAULIC SYSTEM
Pump manufacture
Bondioli & Pavesi
Pump type
2x piston, 1x gear
Auxiliary oil pressure
180 bar
Auxiliary oil flow
44 l/min
TANK CAPACITIES
Fuel tank
38 l
Hydraulic tank
38 l
OPERATIONAL
Steering
Single, pilot operated joystick
Lift and tilt
Single, dual-axis joystick
ELECTRICAL SYSTEM
Voltage
12 V
Battery capacity
72 Ah
STANDARD BUCKET
Width
125 cm
Capacity
0.23 m3
Cutting edge
Hardox HB500

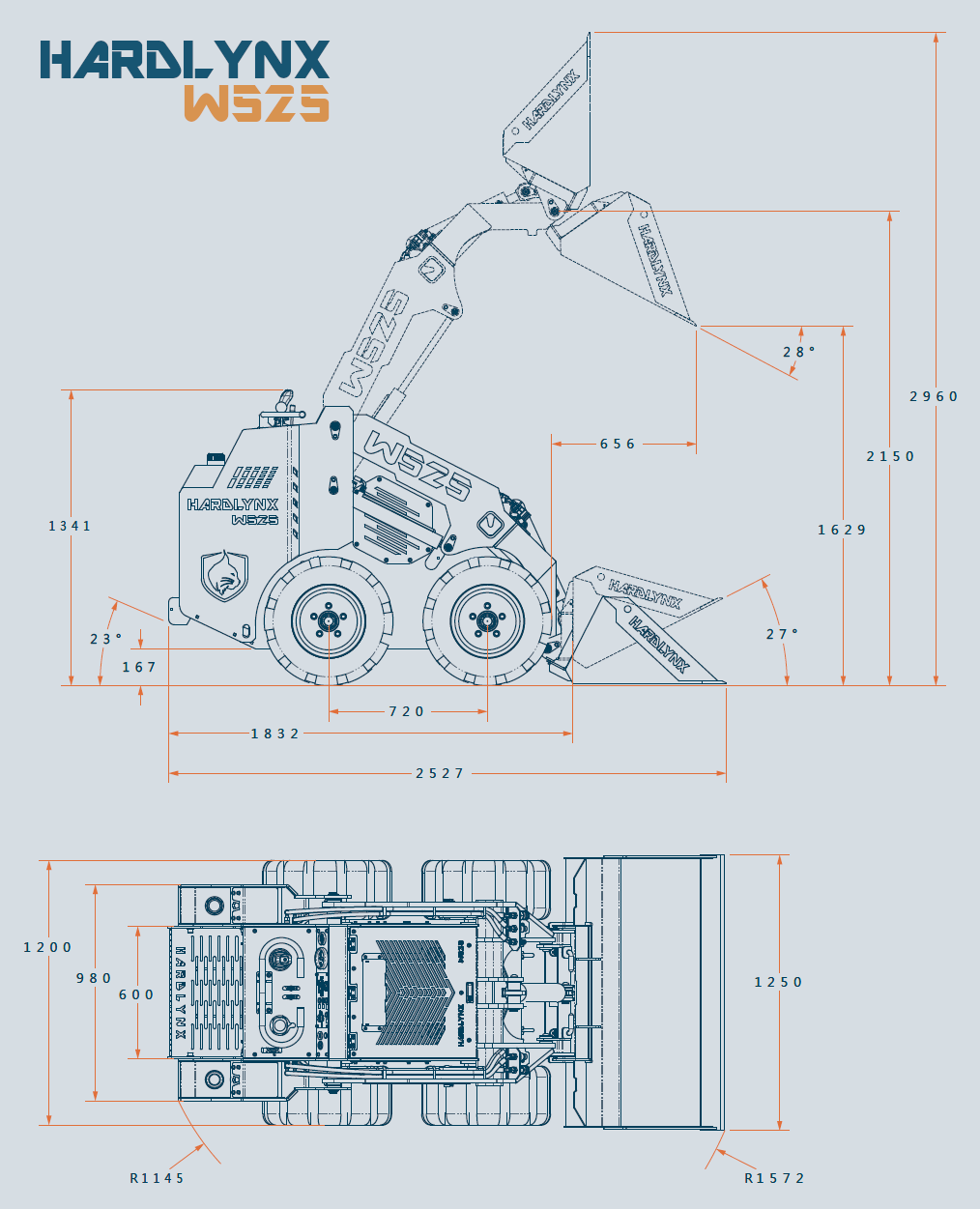

Dimensions

Image gallery

Videos

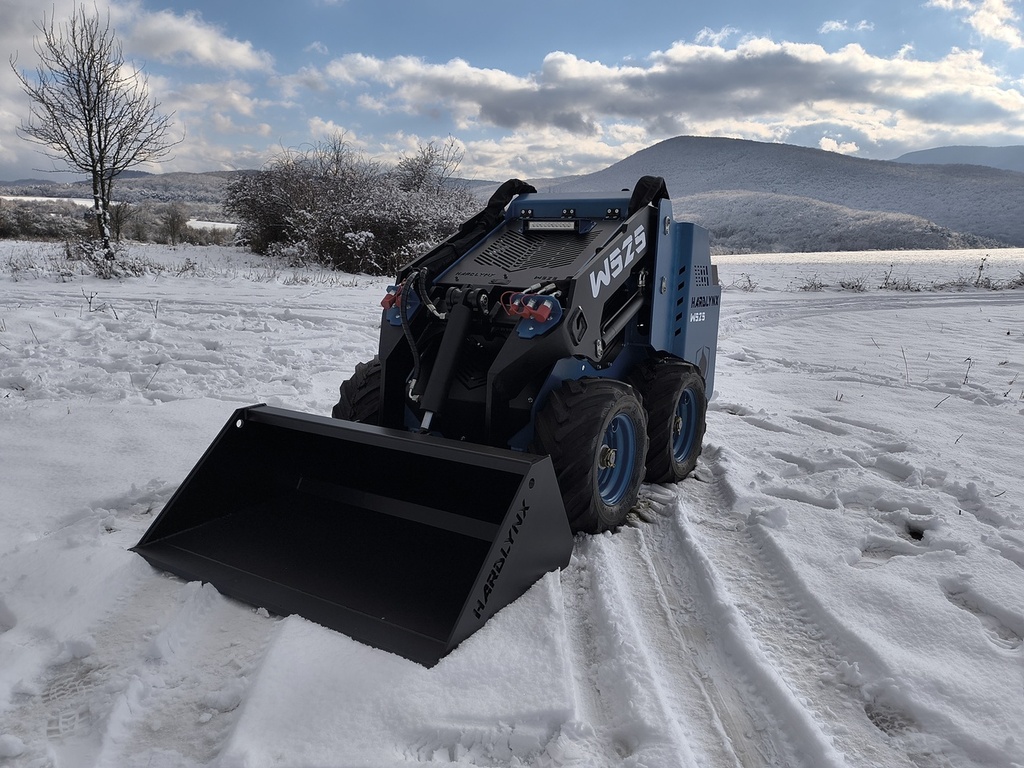

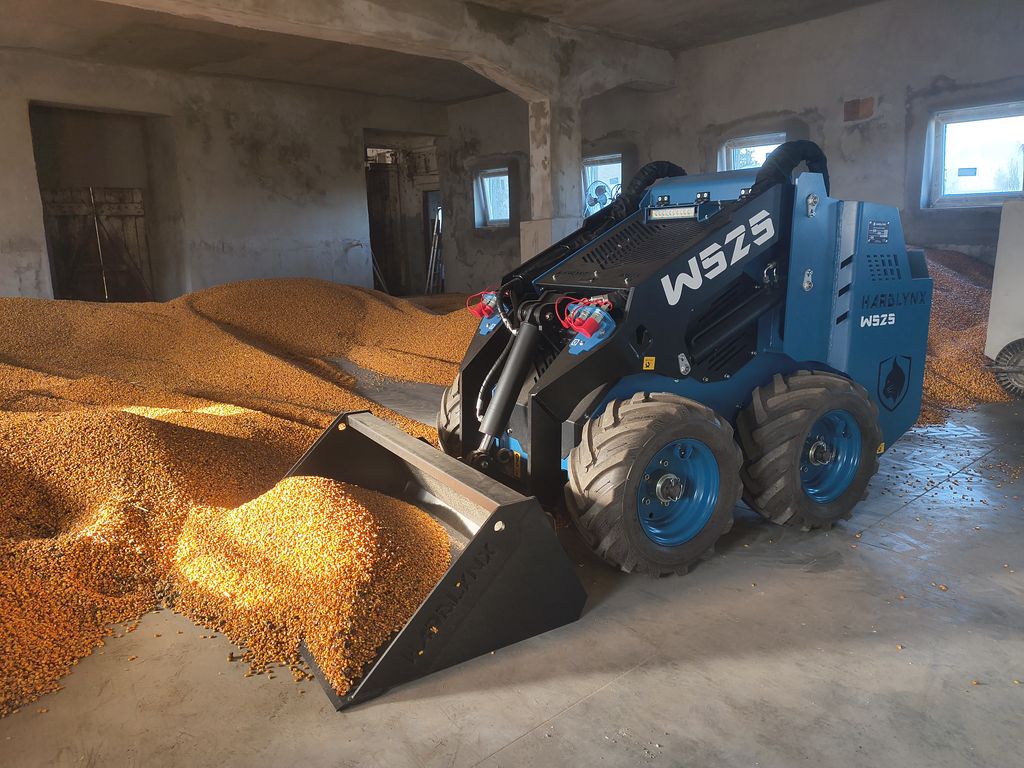

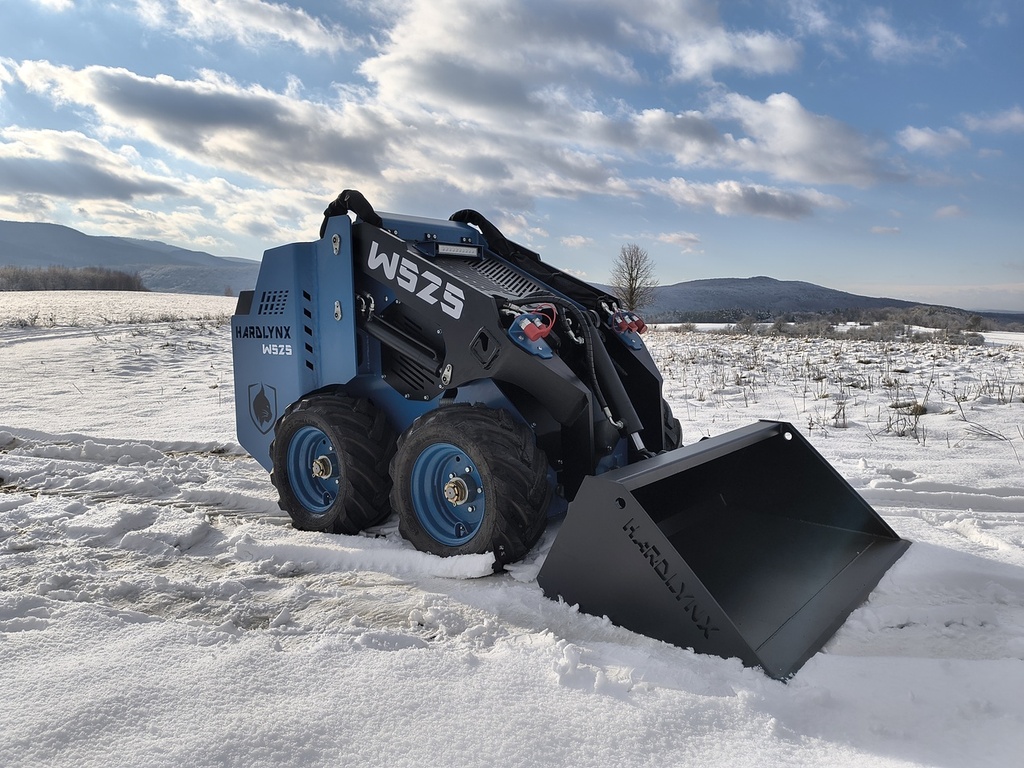

HARDLYNX W525 + Standard Bucket
HARDLYNX W525 - Spreading Topsoil
HARDLYNX W525 + Ripper

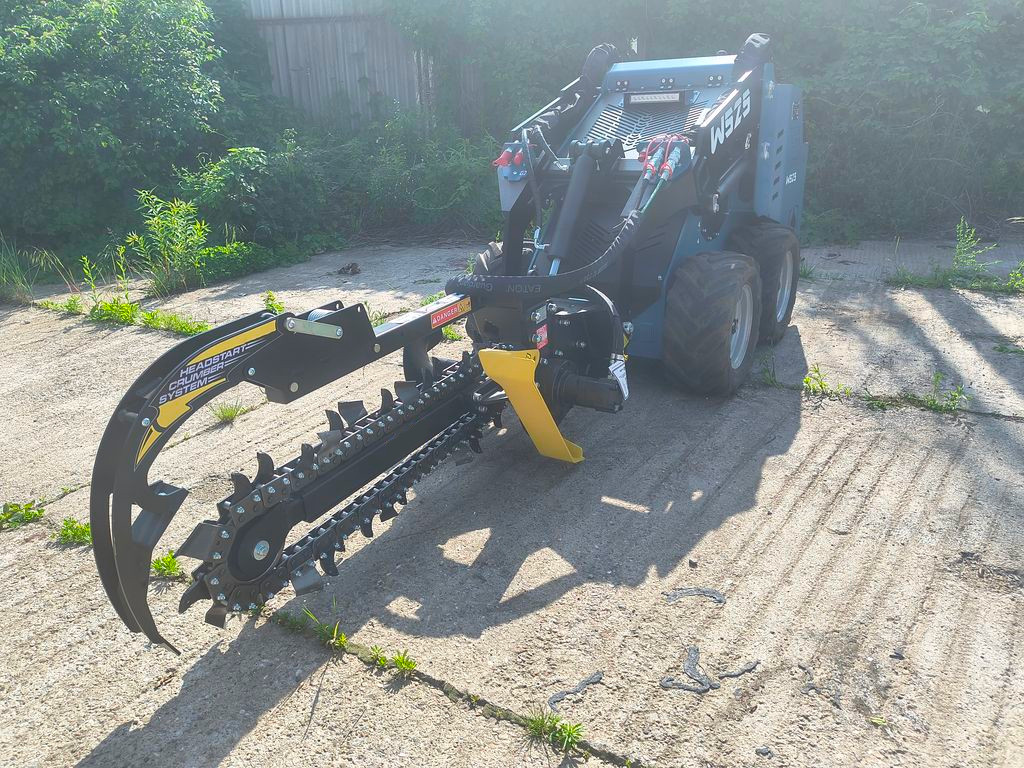

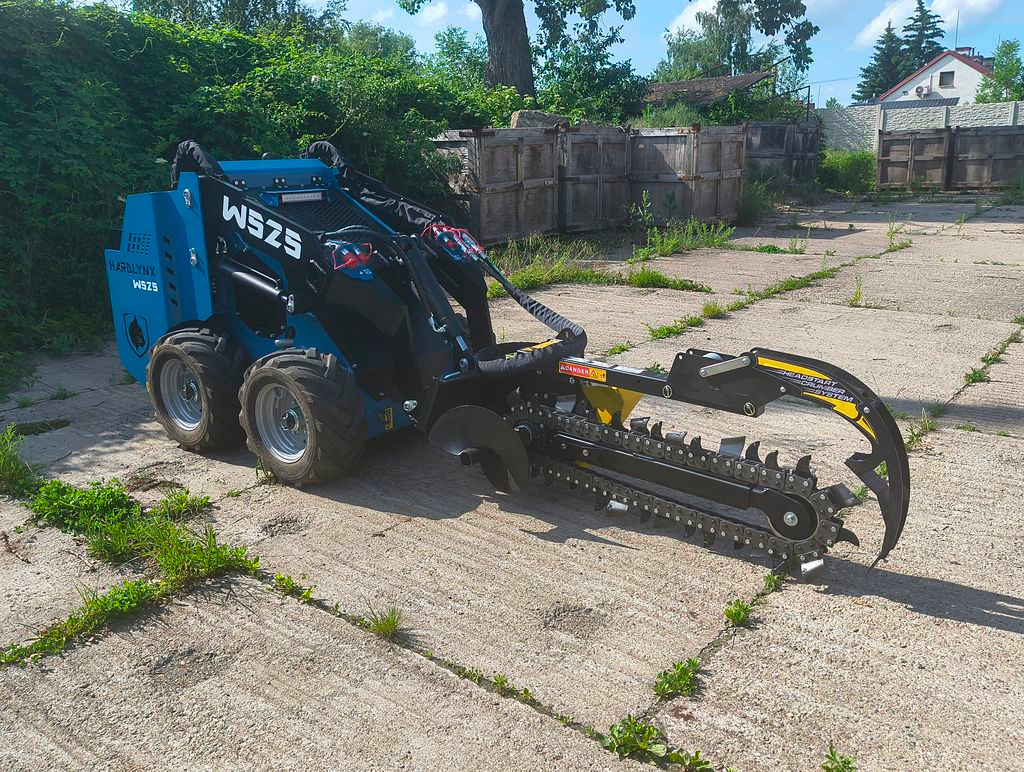

HARDLYNX W525 + Trencher
HARDLYNX W525 + Leveling Blade

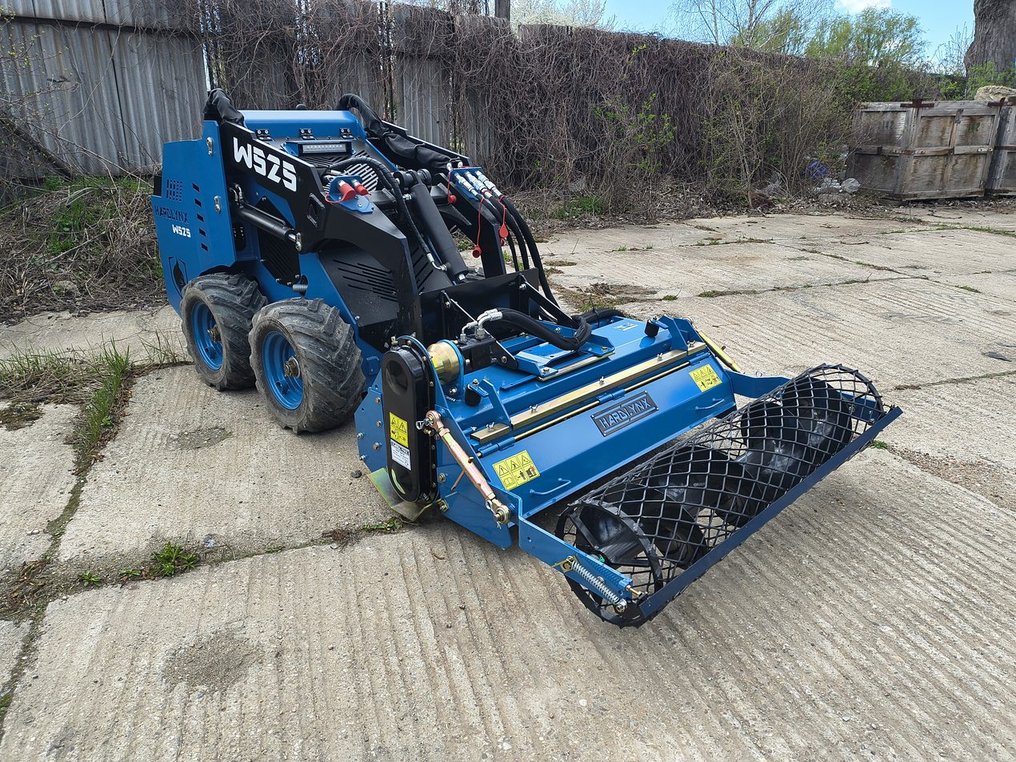

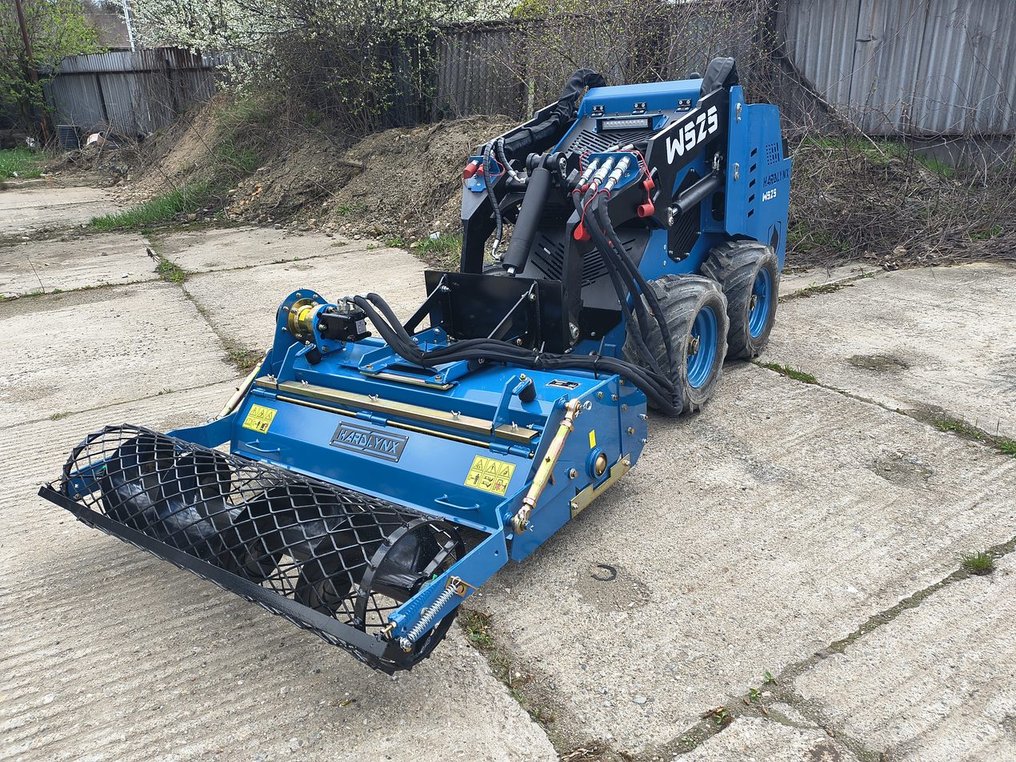

HARDLYNX W525 + Stone Burier
HARDLYNX W525

Attachments

See all attachments

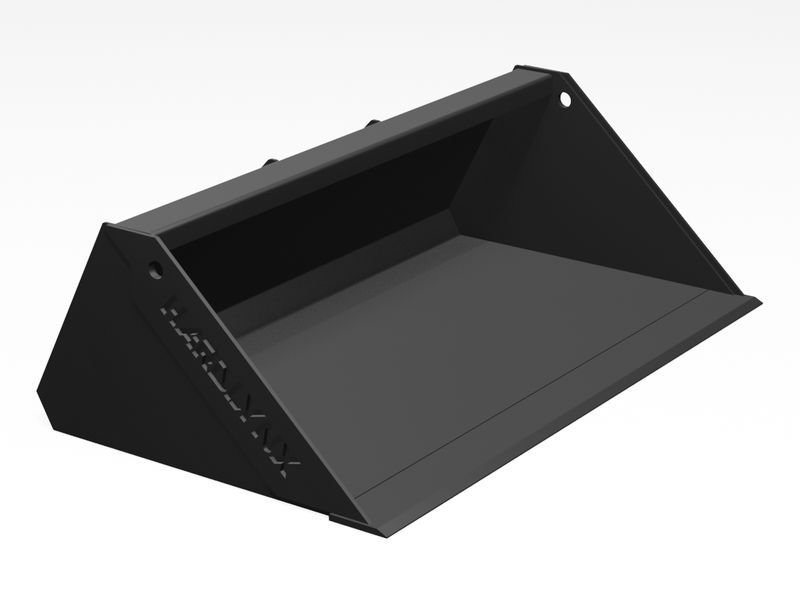

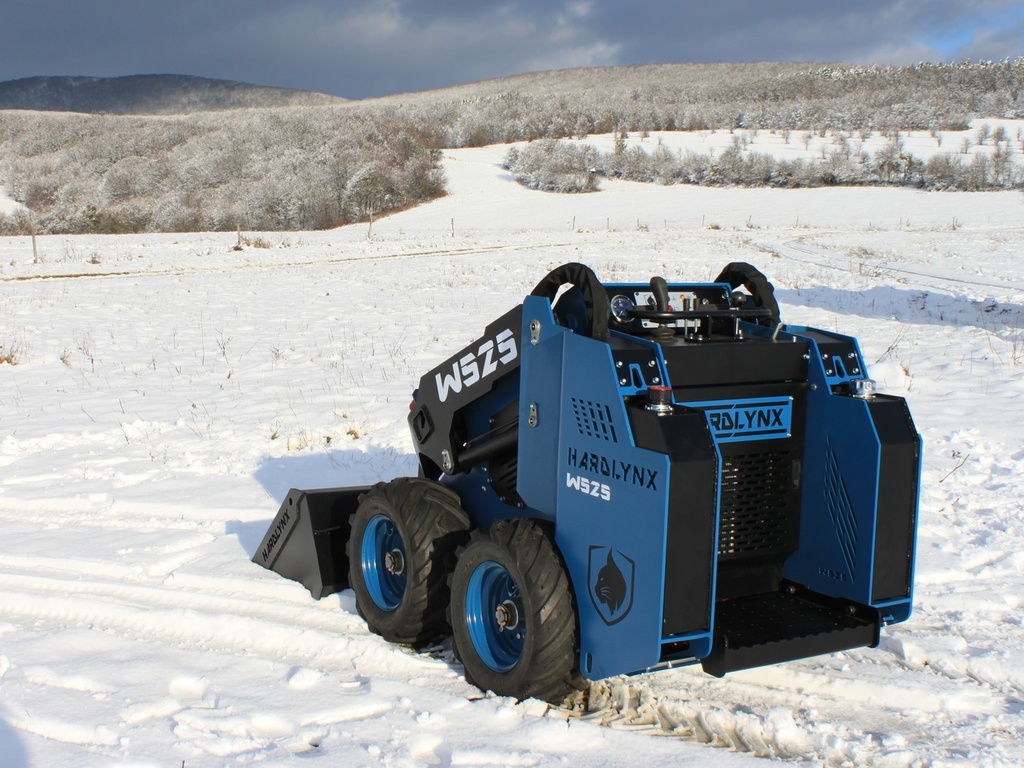

Standard Bucket

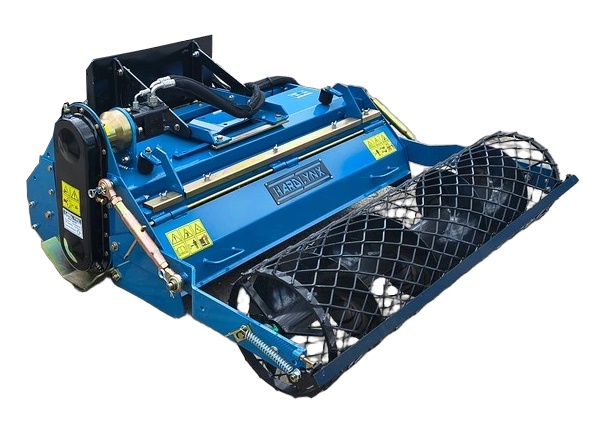

Stone Burier 125

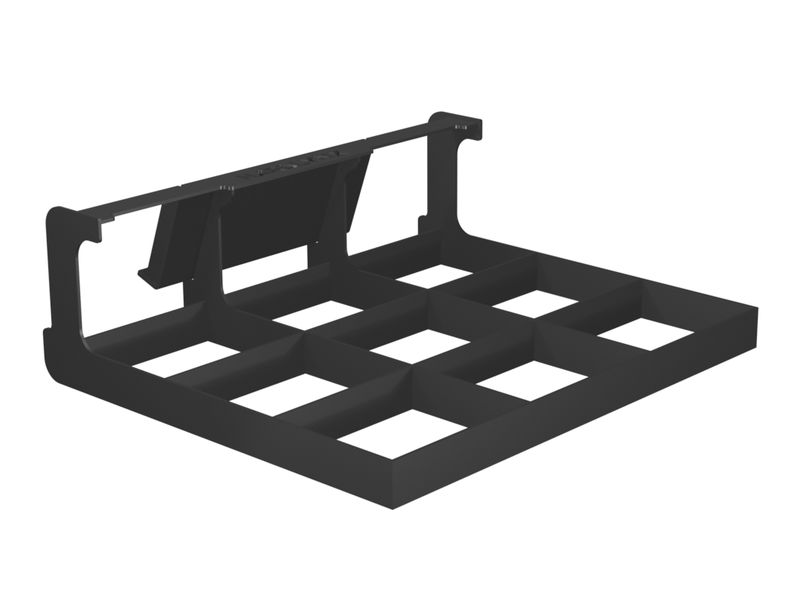

Leveling Blade

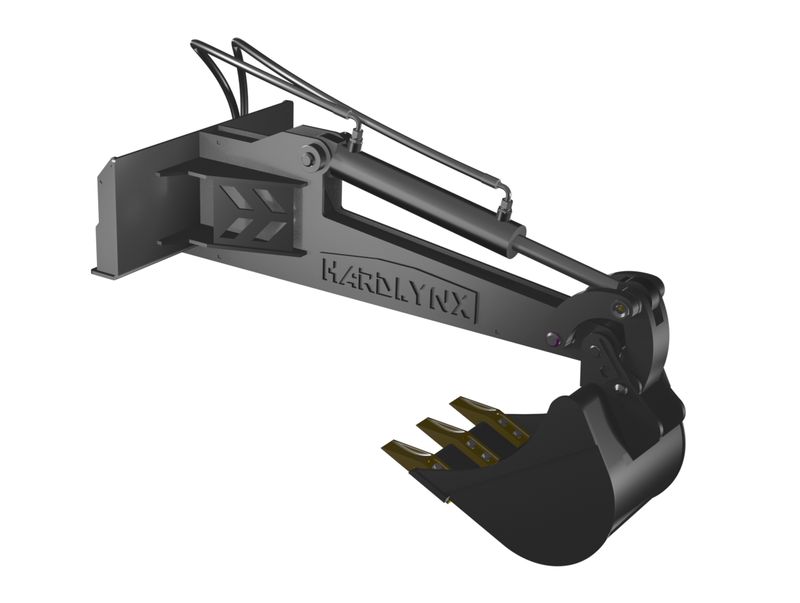

Mini Excavator

Auger Drive Unit (DIGGA)

Auger Bits

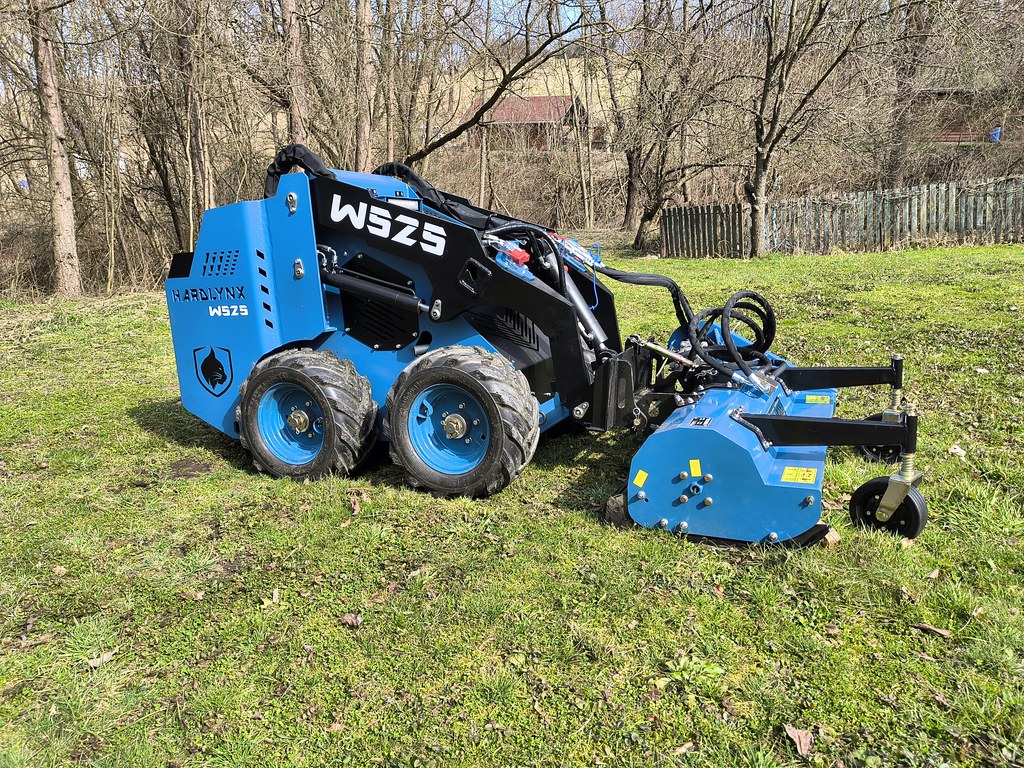

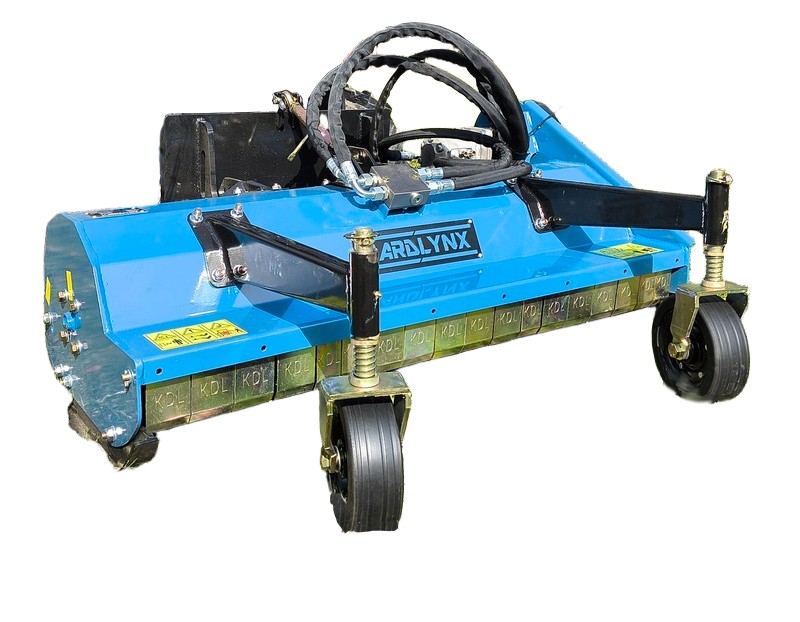

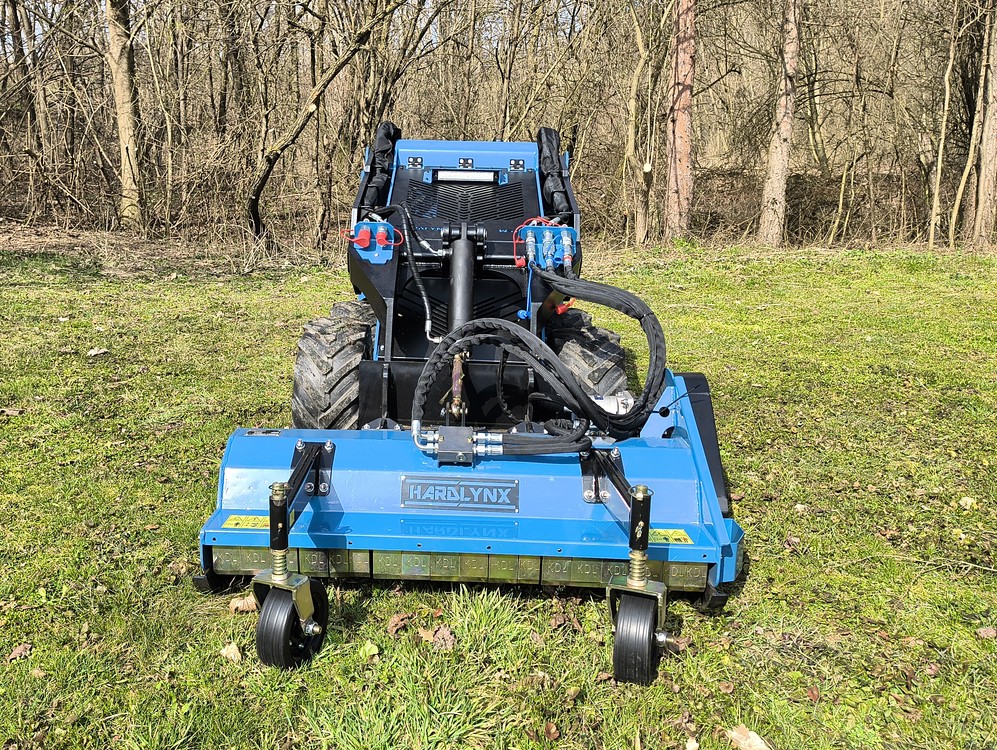

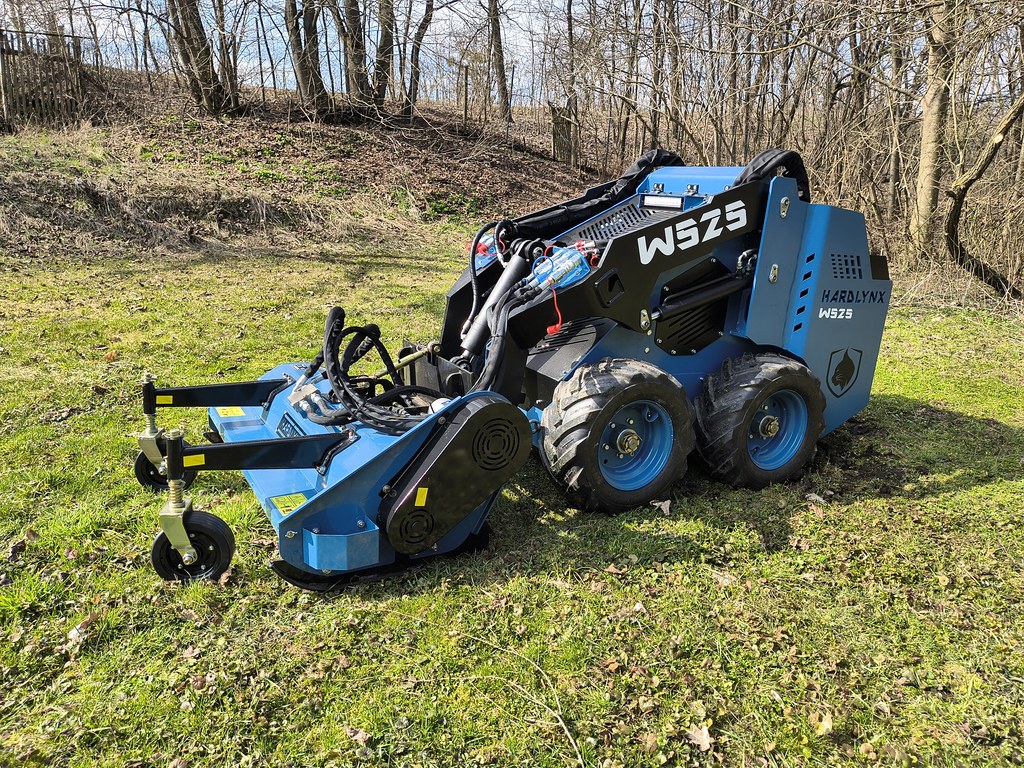

Flail Mulcher

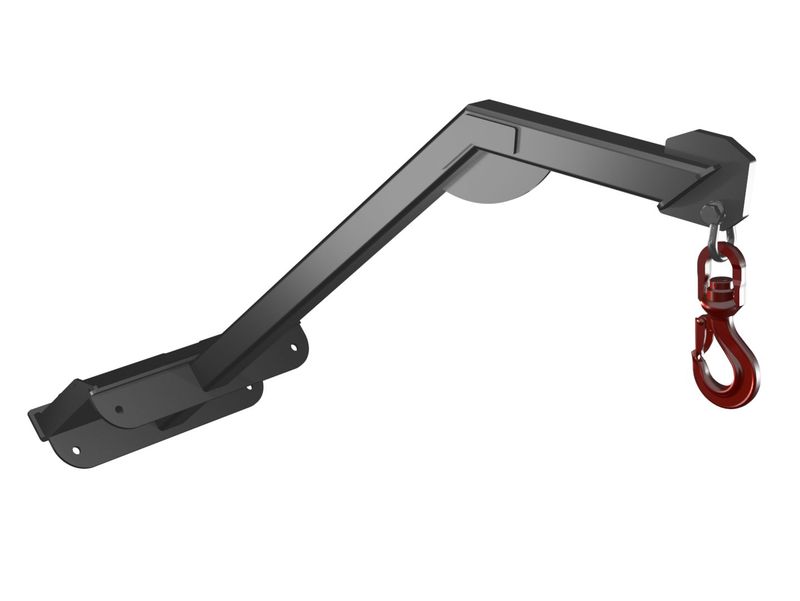

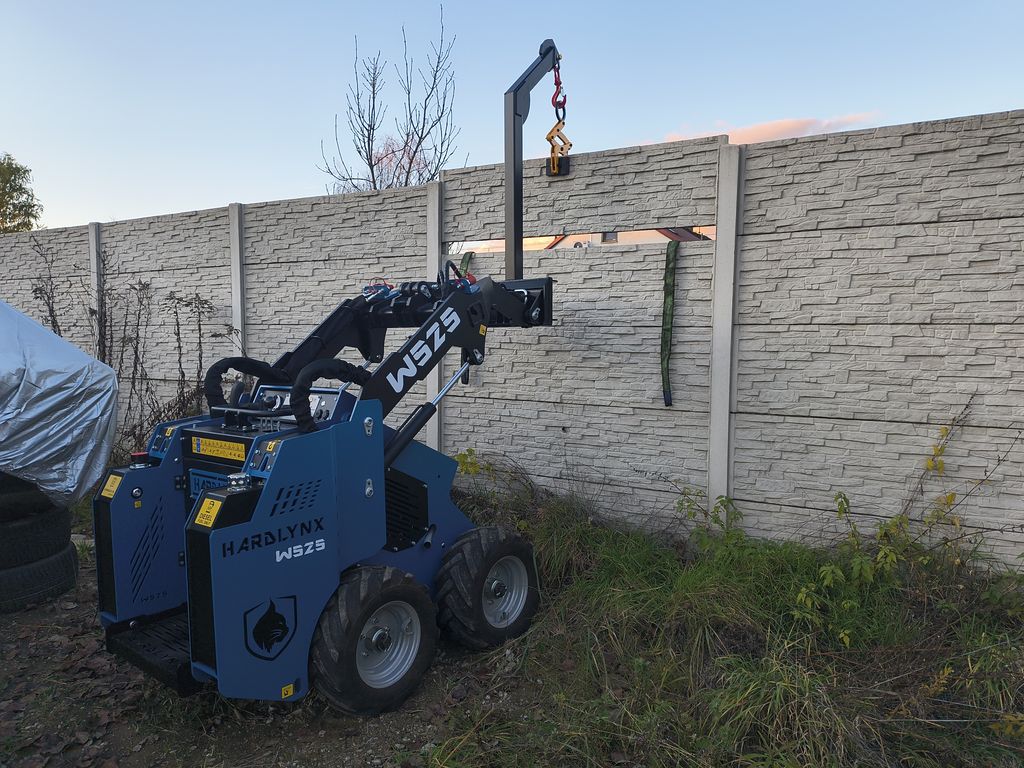

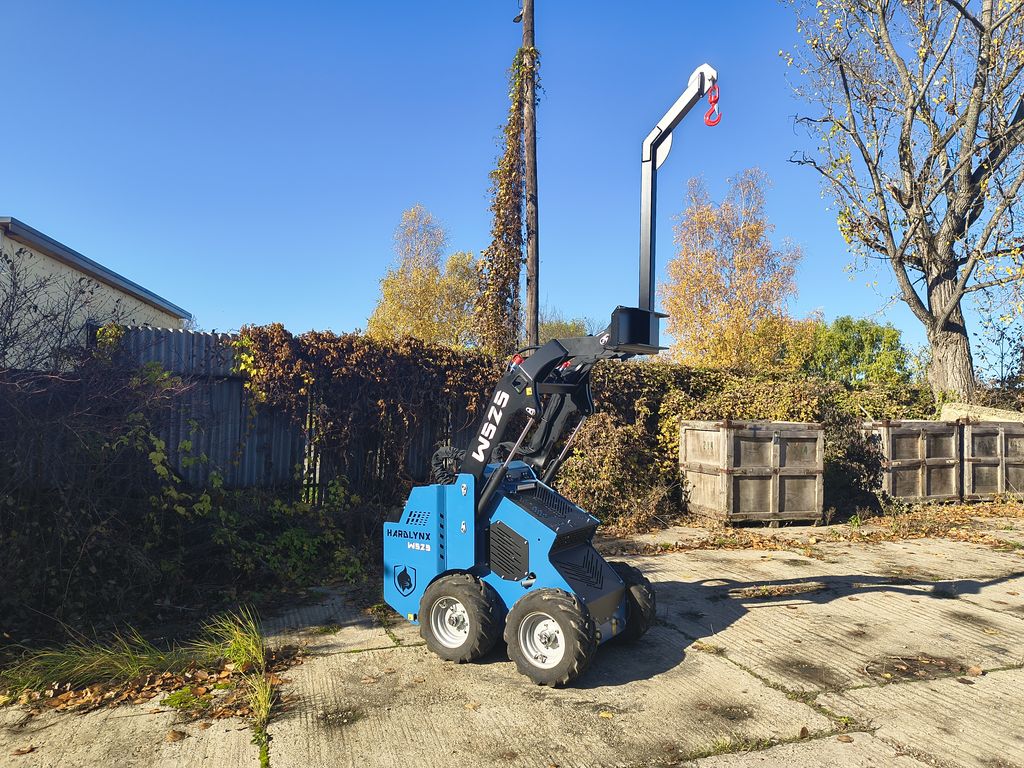

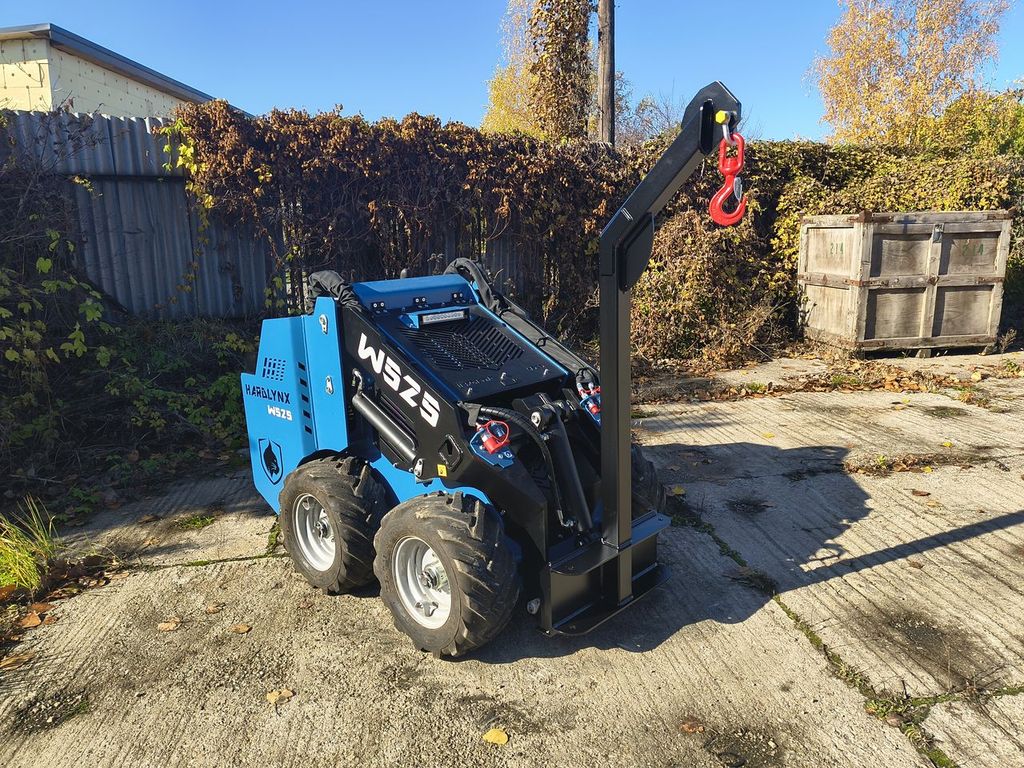

Crane Jib

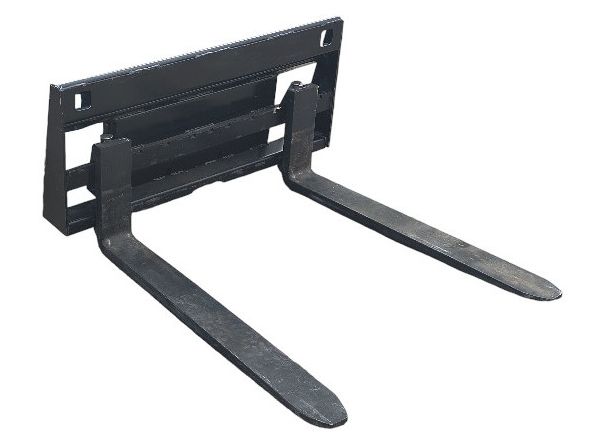

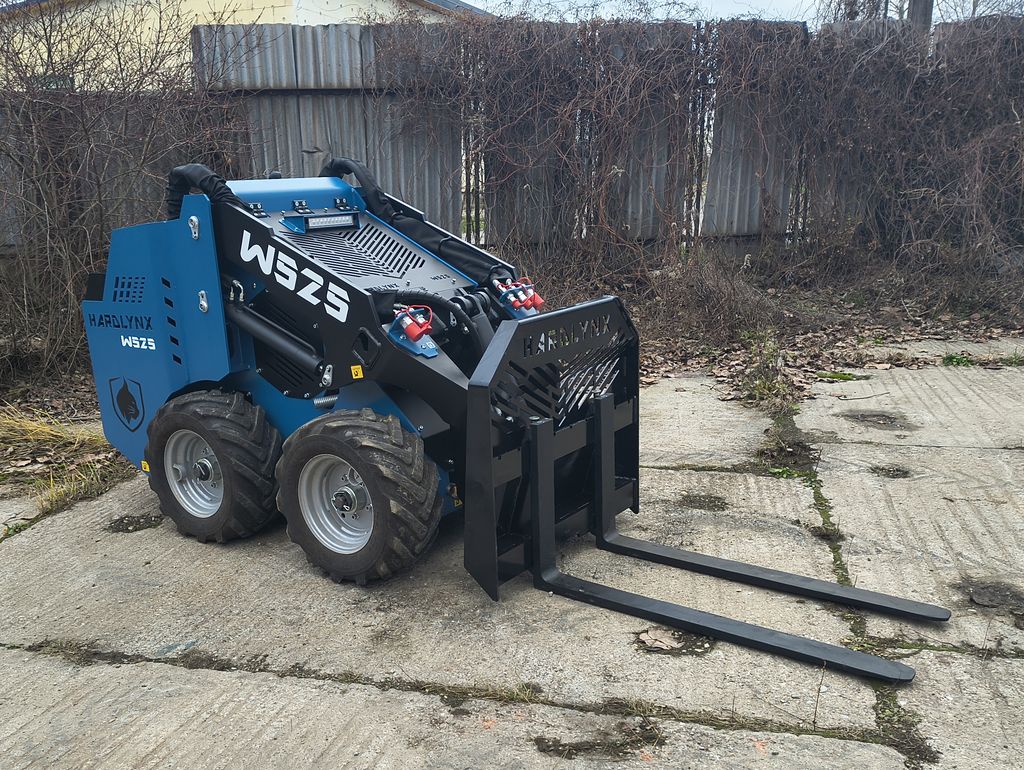

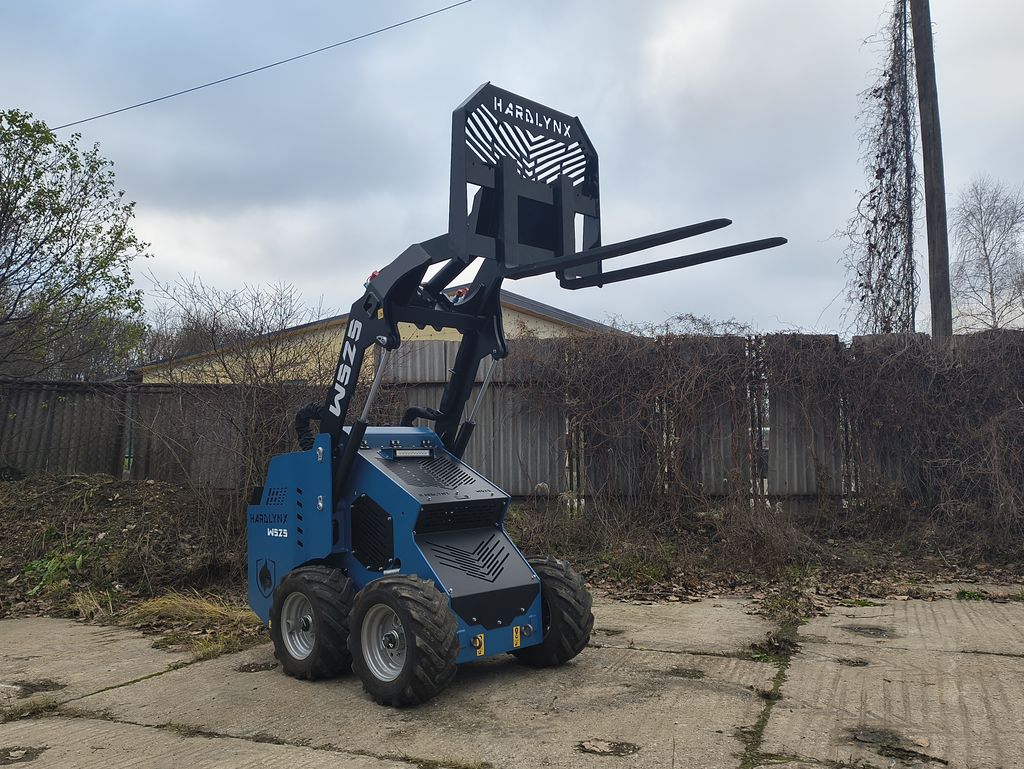

Pallet Fork

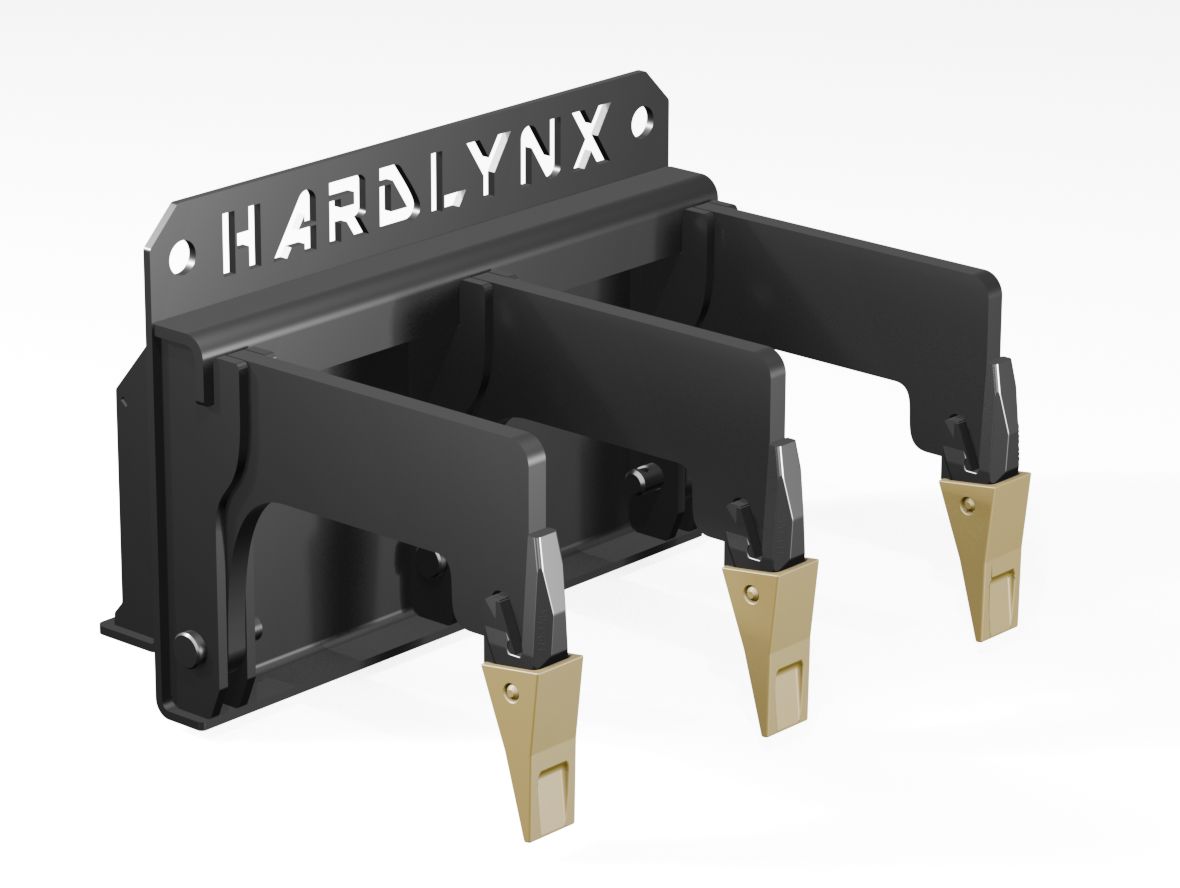

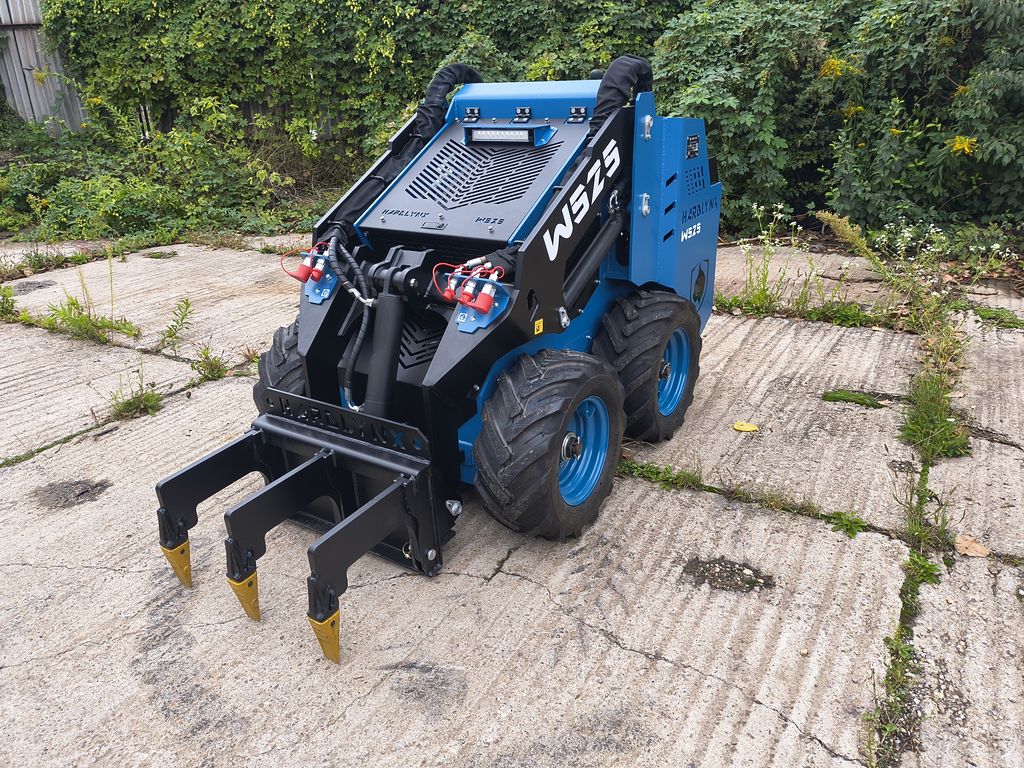

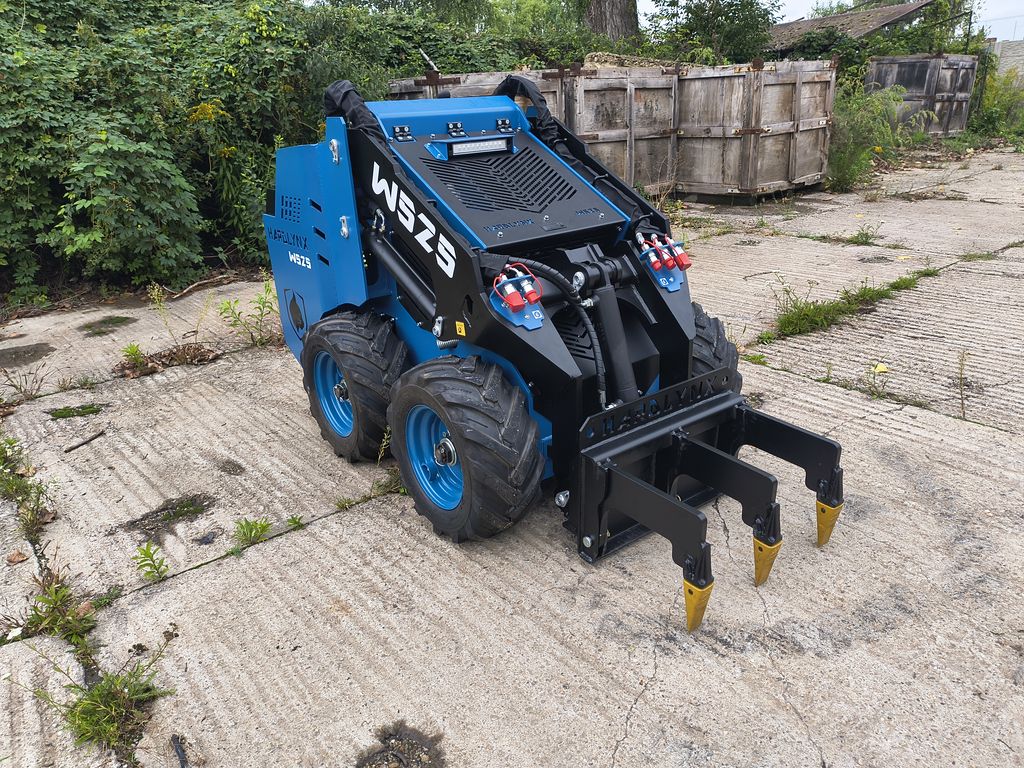

Ripper
